Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

  • 1
  • 2

Brand Name : FILLPACK

Model Number : FP-120

Certification : CE/ISO9001

Place of Origin : Zhangjiagang, China

MOQ : 1 set

Price : 100USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 sets per month

Delivery Time : 15-20 working days

Packaging Details : Cartons

Capacity : 150BPH

Production material : PET

Clamping force : 6000kg

Mould opening stroke : 360mm

Stretching stroke : 450mm

Total power : 40kw

Number of cavity : 1

Weight : 30000KG

Power(W) : 38kw

Contact Now

Product Description

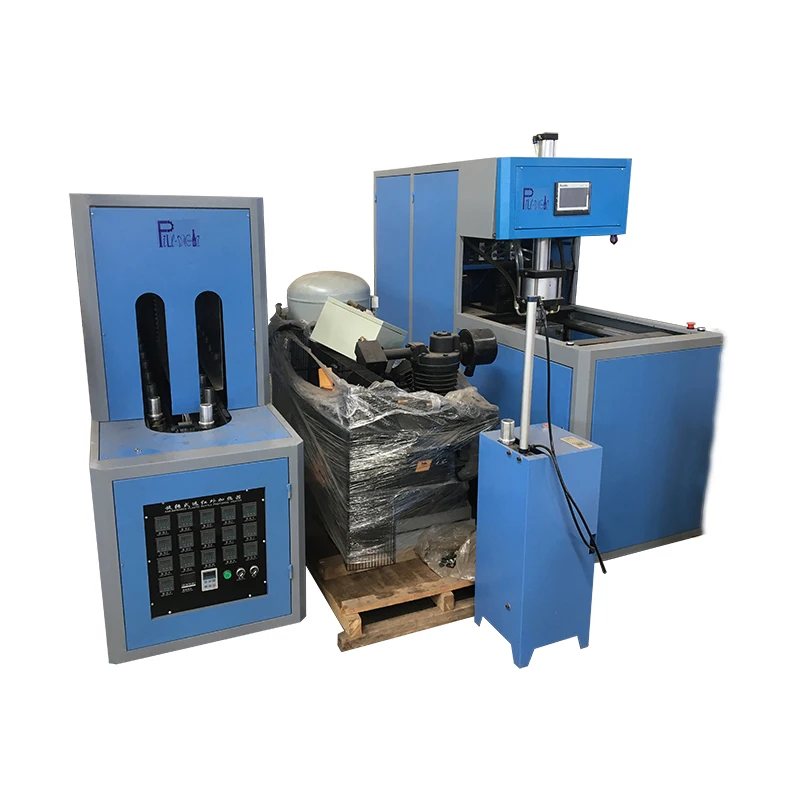

Semi auto 3-5 gallon / 20 liters PET bottle blow molding making machine with handle

Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

Description:

FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.

●Perfect function with economic investment.

●Small size and compact construction with no space waste.

●Easy to operate and maintain ,operation by one person .

●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

●We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Parameters:

Model
FP-120
Container
Product material
PET
Volume
10L-20L(3-5Gallon)
Output
150PCS/H
Max bottle length
430mm
Max bottle diameter
300mm
Moulding
Stretching stroke
450mm
Clamping force
6000kg
Mould opening stroke
360mm
Machine size and weight
Main machine (L x W x H)
2350*750*1900mm
Main machine weight
1500Kg
Heater (L x W x H)
2670*680*1650mm
Heater weight
380Kg
Power
40kw

Detailed Images
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

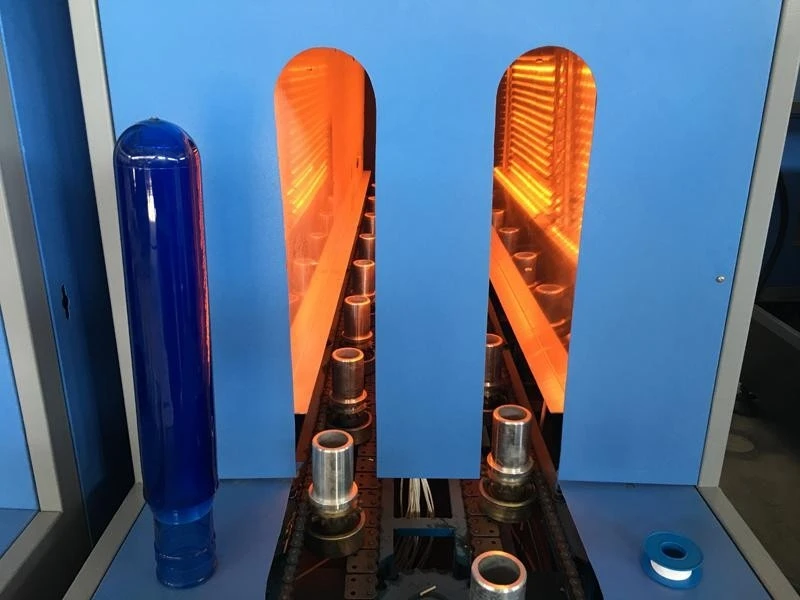

Preform heating
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

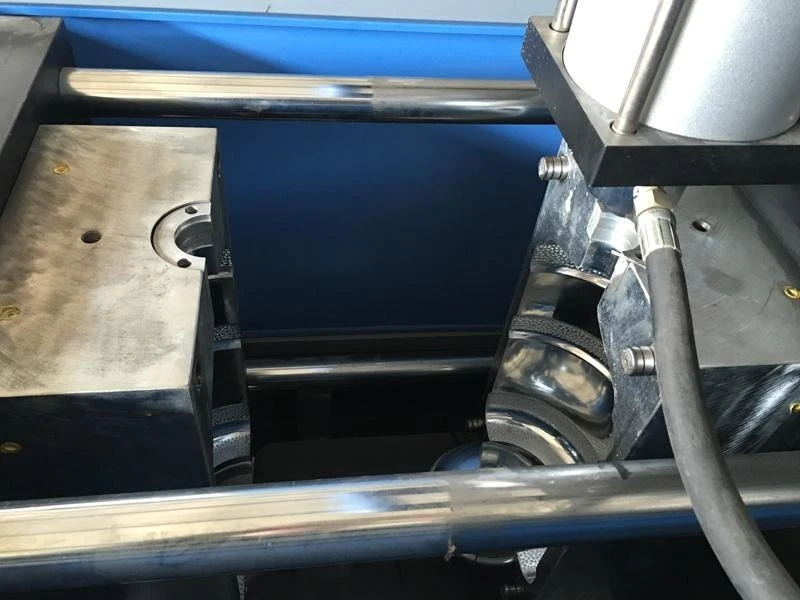

Bottle blowing and mould
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

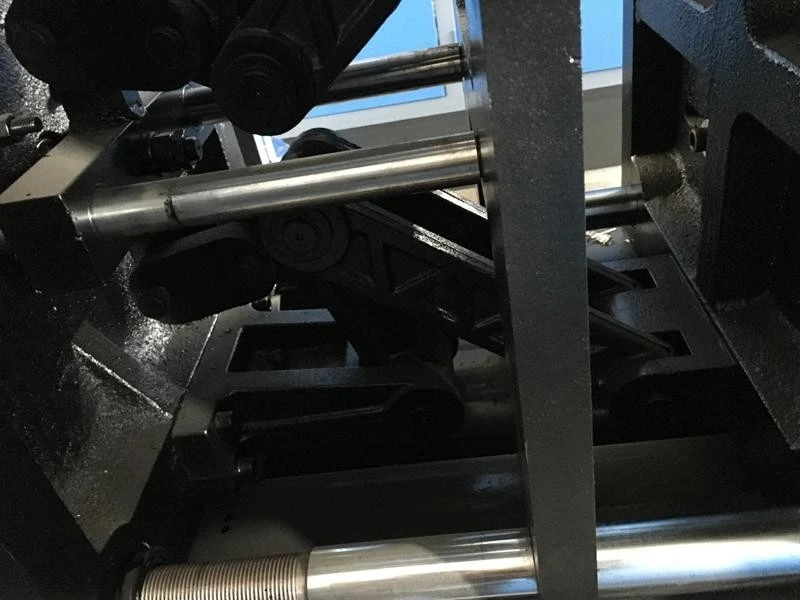

Mould clamping
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

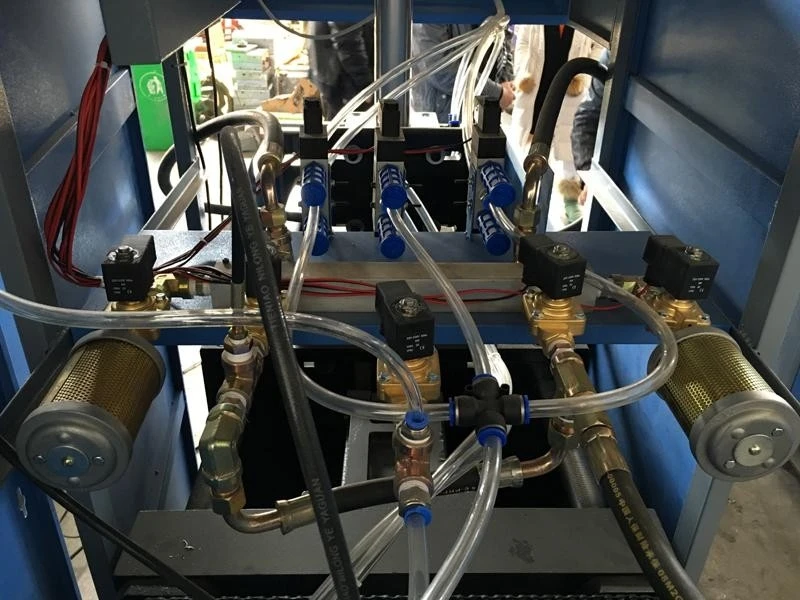

Air system
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

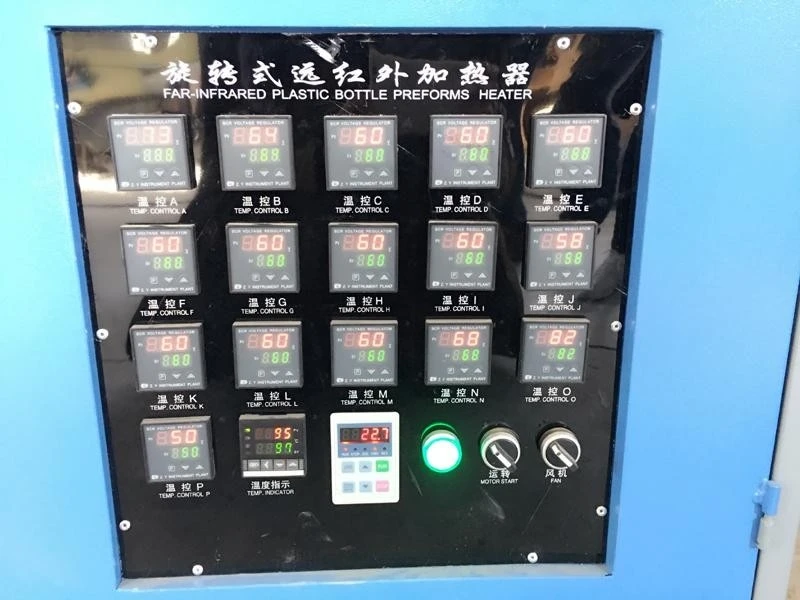

Temprature controller
Plastic PET Bottle Blow Molding Machine Semi Auto 3 / 5 Gallon / 20 Liters / 18.9L

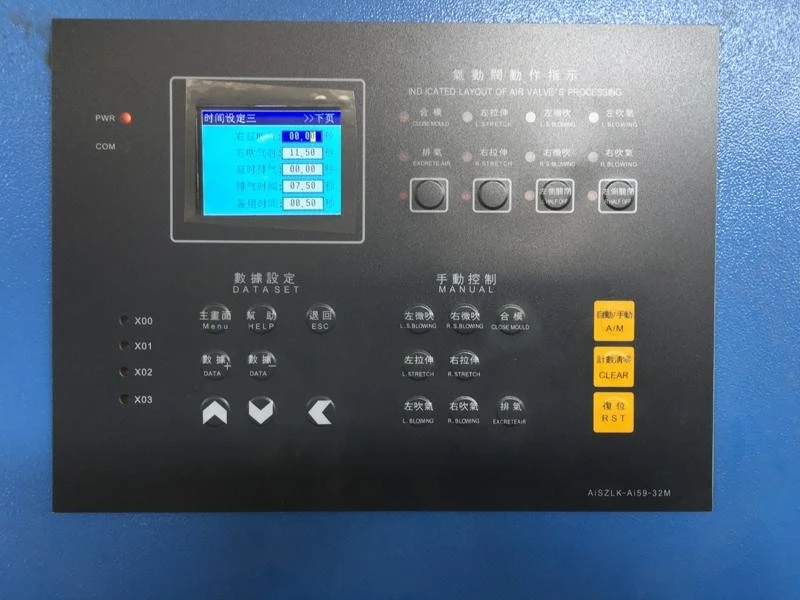

Micro computer blowing controller
